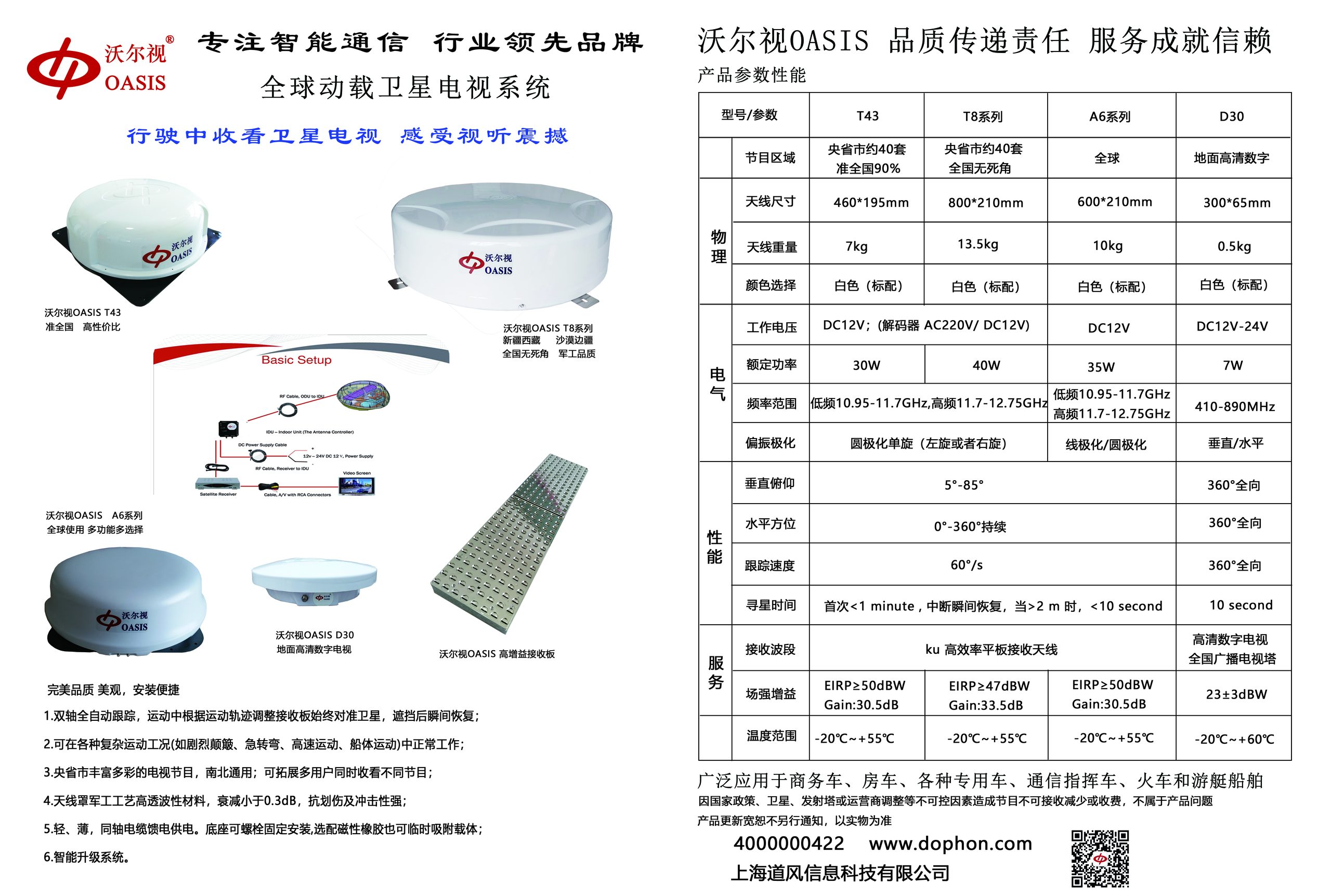

OASIS T81
OASIS Satellite TV antenna System for RV and Ship
Product Specification Document:
Ant
Description
System function：
Satellite Television
Mobile satellite television antenna receiving system
Area:
T8：EIRP≧47.5dB The frontier desert covers the whole country
Size：
T81： 800_210mm 15kg
Electrical：
T81： DC 12V 45W
Frequency:
single spin circular polarization
Low frequency10.95-11.7 GHz
High frequency11.7-12.75 GHz
Angle:
pitch 5°-85° Horizontal：0°-360°Continue
Trace:
fully automatic on both axes, first < 1minute, interrupt instant recovery, when > 2m< 10second
Other:
Programs that can not be received or reduced due to uncontrollable factors such as changes in state, tower or operator policies are not product issues.
System performance:
System options:
- Each terminal can view independently.
expand multi-user at the same time watching different programs, about 40 sets of central province and city TV programs.
